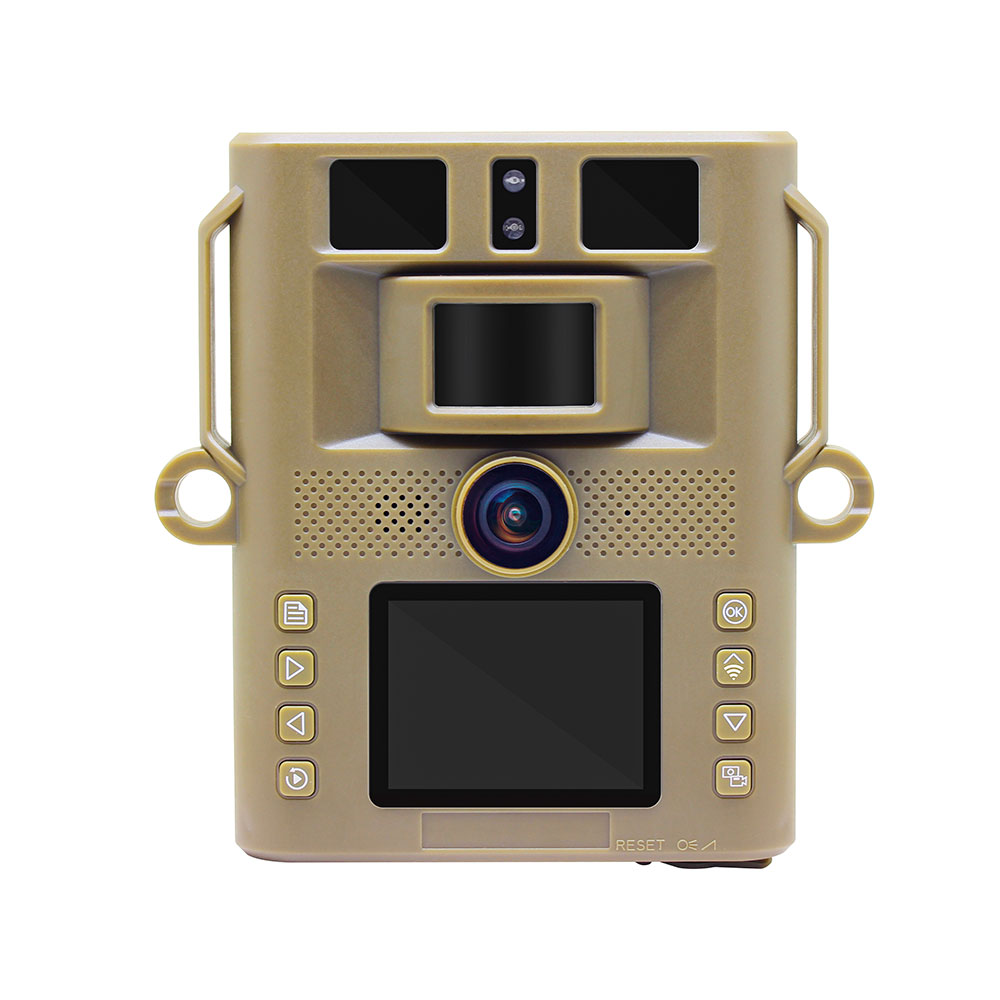

Ultra-Thin Solar WiFi Trail Camera

    Compact yet powerful, this WiFi trail camera offers exceptional 4K video and 46MP photos—ideal for recording wildlife in superb detail. ◆ Built-in microphone and speaker ◆ Equipped with USB Type-C interface ◆ Maximum support for 256GB TF card

Model: BK-T20WF

Download:

Features

Integrated Wi-Fi and Bluetooth capabilities make it easy to transfer images and videos. Additionally, the built-in 5000mAh battery combined with the option to run continuously using solar panels is a great sustainable power solution, making it suitable for a variety of outdoor environments.


◆ Supports 4K ultra-high-definition video recording

◆ Photo pixel: 8 million, maximum 46 million (interpolated)

◆ Engineered to be ultra-slim

◆ Equipped with 2 high-power infrared flashlights

◆ WiFi wireless function for remote photo and video viewing and downloading


Specification


Lens

f=4.15mm, F/NO=1.6, FOV=93°

Picture Resolution

46M:9040 × 5072; 44M:8832 × 4960; 40M:8416 × 4736; 36M:8000 × 4496; 30M:7392 × 4160; 24M:6544 × 3680; 20M:5888 × 3312; 16M:5376 × 3024; 12M:4608 × 2592; 8M:3840 × 2160; 4M:2560 × 1440; 2M:1920 × 1088

Video Resolution

4K(3840 × 2160@30fps); 2K(2560 × 1440@30fps); 1296P(2304 × 1296@30fps); 1080P(1920 × 1080@30fps); 720P(1280 × 720@30fps); 480P(848 × 480@30fps); 368P(640 × 368@30fps)

Video Format

JPEG/MPEG-4(H.264)

Display Screen

2.4" color TFT LCD

Trigger Distance

65ft/20meters

Trigger Time

Appr. 0.3 second

Detection Angle Sensor

60°

IR Flash Range

65ft/20meters

Functions

Multishot 1 to 10 images, interval 5 sec. to 60 min., video length 5 sec. to 3 min, interval recording, timer, password protection, image info stamp, low battery alarm

Memory

TF card up to 256 GB

WiFi

2.4-2.5GHz 802.11 b/g/n (High-speed up to 150 Mbps)

WiFi Functions

Take photos and videos, real-time preview, download/delete the taken photo and video files, change MENU settings, check battery and memory capacity in the APP.

Power

3.7V/5,000mAh Lithium battery with solar panel

Solar Panel Power

1.2 Watt

Charging Time via USB

About 7 hours in power off mode; About 24 hours in SETUP/ON mode

Charging Time via Solar Panel

About 4-10 days at optimal sunshine

Power Supply

Solar Panel included or external 5V/1A adaptor

Bluetooth 5.0 Frequency

2.4GHz ISM frequency

Average Battery Life

Uninterruptible power supply outdoor, Up to 12 months without solar panel charging indoor

Connectors

USB type-c

IP Class

IP66 Waterproof

Operating Temperature

-20 - 60°C

Storage Temperature

-30 - 70°C

Operating Humidity

5% - 90%

Weight

approx. 290g(without mask and solar panel)
